LC Connector Bi Directional 80km 2.5G SFP Optical Transceivers

Brand Name : OEM

Model Number : OEM

Certification : CE RoHS FCC

Place of Origin : china

MOQ : 1 Pair

Price : $50-$60/PCS

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1~3working days after payment

Packaging Details : 10pcs in Plastic tray

Type : Fiber Optic Transceivers

No. of Fiber : 1

Use : FTTX

Supply Voltage : 3.3V

Power : 5~-2dBm

Data rate : 2.5G

Wavelength : Tx1490/Rx1550nm, Tx1550/Rx1490nm

Transmission distance : 80km

Interface : BIDI LC

Fiber Type : SMF

DDMI : Yes

Warranty : 1 Year

Selling Units : 1 Pair

Single package size : 22X5X6 cm

Single gross weight : 0.030 kg

Package Type : 10pcs/ anti-static box.

Contact Now

2.5G BIDI SFP 80km LC Connector SFP Module

Features:

1. 2.5G- BIDI SFP 80KM LC connector

2. Dual data-rate of 2.5Gbps operation

3. 1550nm DFB laser and PIN photo detector for 80km transmission

4. 1490nm DFB laser and PIN photo detector for 80km transmission

5. BIDI LC/UPC type pluggable optical interface

6. Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

7. RoHS compliant and lead-free

8. Single +3.3V power supply

9. Support Digital Diagnostic Monitoring interface

10. Case operating temperature Commercial: 0°C to +70°C

Advantages:

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 2.5Gbps 40km transmission distance.

2. The low jitter and high sensitivity are extinguished advantages with DFB LD and PIN receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.

Specifications:

Technical Parameters	Descriptions	Technical Parameters	Descriptions
Model Number	YXF-2G-B45L-80D, YXF-2G-B54L-80D	Interface	LC
Fiber type	SMF	Laser/Detector	DFB/PIN
Form Factor	BIDI SFP	DDM	Yes
Data Rate	2.5Gbps	Output Power	5~-2dBm
Wavelength	Tx1490/Rx1550nm, Tx1550/Rx1490nm	Power Supply	3.3V
Distance	80KM	Temperature	0~70°C
Sensitivity	<-28.0dBm	Certificate	CE,ROHS,FCC,ISO9001,SGS
Selling Units	1 Pair	Warranty	1Year

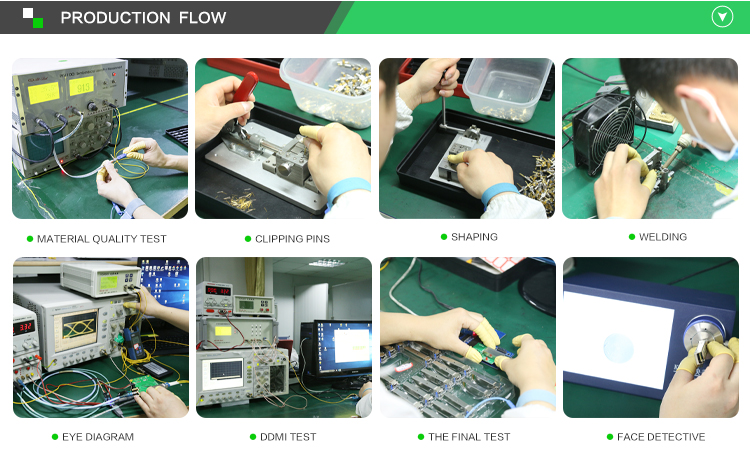

Production Flow

LC Connector Bi Directional 80km 2.5G SFP Optical Transceivers

Packaging & Shipping

LC Connector Bi Directional 80km 2.5G SFP Optical Transceivers
